– 100-240VAC
– Friendly use and supports most mainstream protocols in the market
– Cost effective

SPEC

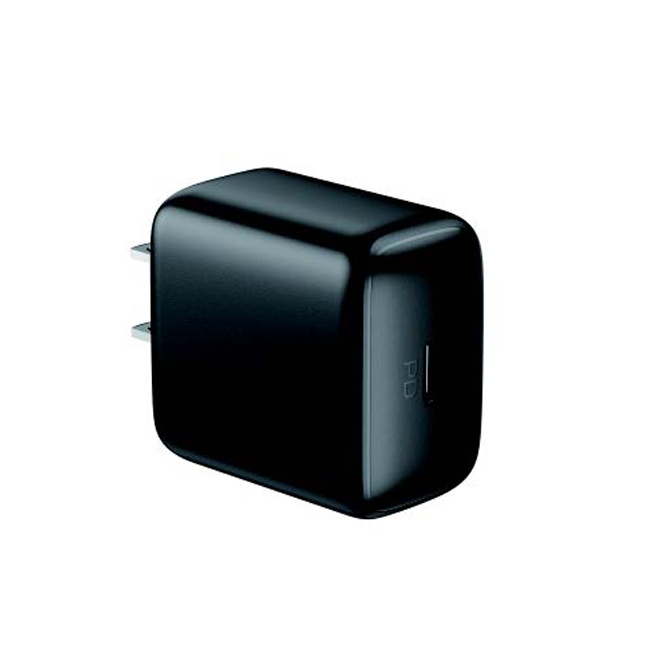

Model: IKA-GA201
Input:100-240Vac 50-60Hz
Output power: 20W Max
Available plug: CN, JP, EU, US, UK
Dimension: 45*44*27.5mm
Certificate: Comply to UL/EN62368
Protection: OVP OCP SCP OTP
Quality warranty: 18 Months

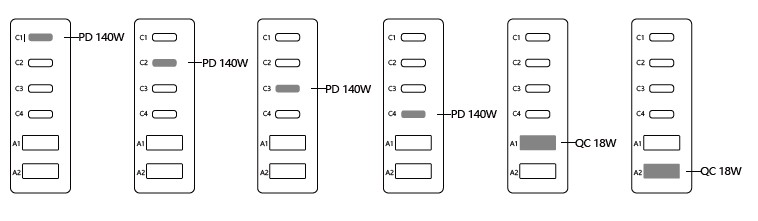

Single port mode
5V3A/9V2.22A/12V1.67A

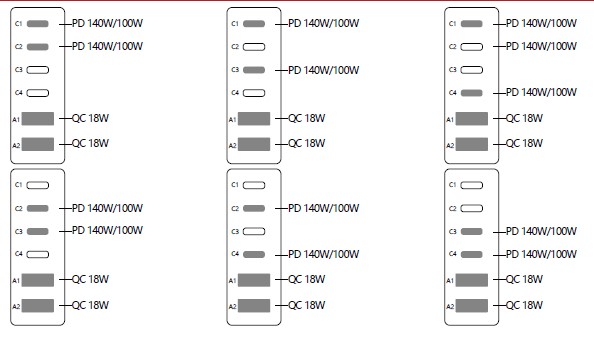

Multiple Ports: 2C+2A

Remarks: The above 2C combined power output, when the power of the first plug terminal is 100W
and below, the C of the rear plug is 100W; When the first plug is 140W, the second plug C is 65W.

Multiple Ports: 3C+2A
http://www.ikano-corp.com.tw/wp-content/uploads/2023/10/Screenshot_3.jpg
Remarks: Based on the 2C power output distribution rule, allocate the power of the third C port
according to the above table (when the power is less than 65W, also press 65W)

Multiple Ports: 4C+2A
http://www.ikano-corp.com.tw/wp-content/uploads/2023/10/Screenshot_4.jpg
