– 100-240VAC
– 4C 2A
– Support Samsung SFC 2.0
– All 4 C-ports can support PD3.1 output.

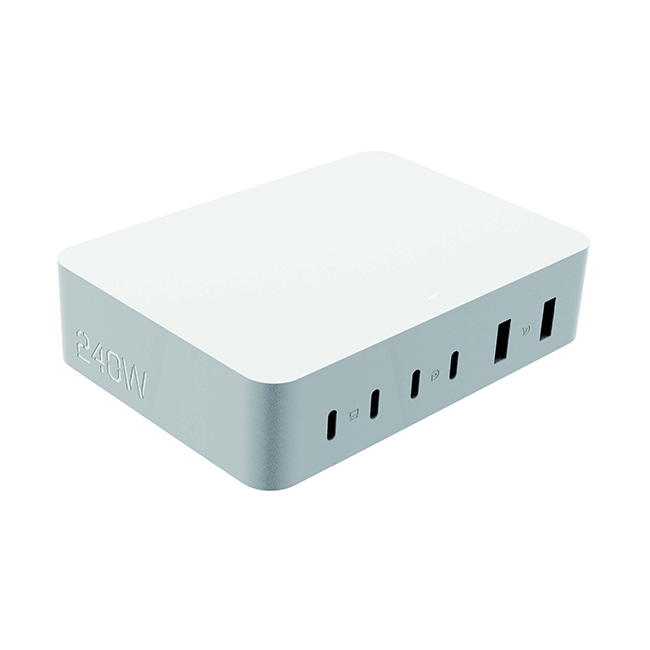

SPEC
Model: IKA-GA2401
Input:100-240Vac 50-60Hz
Output power: 240W Max
Available plug: CN, JP, EU, US, UK
Dimension: 130*91*34.5mm
Certificate: Comply to UL/EN62368
Protection: OVP OCP SCP OTP

Single port mode
C1 140W PDO: 5V3A/9V3A/12V3A/15V3A/20V5A/28V5A PPS:3.3-21V 5A
C2 140W PDO: 5V3A/9V3A/12V3A/15V3A/20V5A/28V5A PPS:3.3-21V 5A
C3 140W PDO: 5V3A/9V3A/12V3A/15V3A/20V5A/28V5A PPS:3.3-21V 5A
C4 140W PDO: 5V3A/9V3A/12V3A/15V3A/20V5A/28V5A PPS:3.3-21V 5A
A1 QC18W: 5V3A/9V2A/12V1.5A
A2 QC18W: 5V3A/9V2A/12V1.5A

Multiple Ports: 2C+2A

Remarks: The above 2C combined power output, when the power of the first plug terminal is 100W
and below, the C of the rear plug is 100W; When the first plug is 140W, the second plug C is 65W.

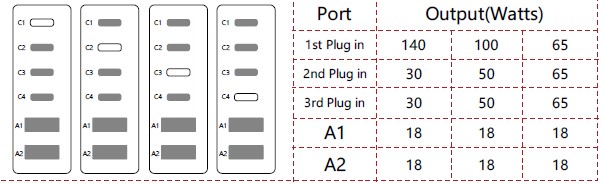

Multiple Ports: 3C+2A

Remarks: Based on the 2C power output distribution rule, allocate the power of the third C port
according to the above table (when the power is less than 65W, also press 65W)

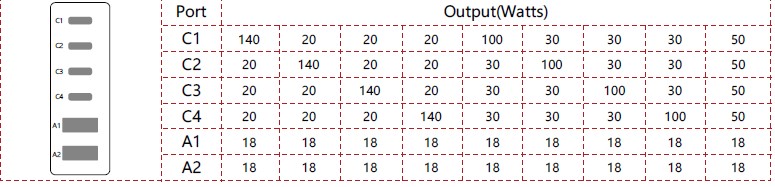

Multiple Ports: 4C+2A
