Multiport charging with the MultiCharger range of non-managed devices

Applications:

• Apple iOS and Android device charging.
• Retail product display power.
• BYOD charging systems.
• Compact charging carts, cases and systems.
• Public and private charging lockers.
• Festival and event charging stations.

Benefits & Features:

• Compact, reliable and safe unit.
• Available with Apple iOS device 2.1A charging profile, 2.4A charging profile and basic BC1.2 charging profile.
• Independently safety tested by the Underwriters Laboratory (UL file number #E346549).
• Between 14x and 16x Downstream USB ports for charging depending on MultiCharger variant.
• Charge multiple USB devices simultaneously.
• Choose the MultiCharger variant to suit your application.
• Can be mounted to a surface using the built-in flanges.
• Offer safe charging locations for staff and customers.
• Housed within a UL94-V0 specification fire enclosure.
• 2 Year RTB warranty.

The MultiCharger Range

The MultiCharger range consists of three compact units designed to allow a user to charge up to 16x USB devices efficiently and safely. All MultiCharger units share the same form-factor and mounting flanges, the product label (running down the centre of the MultiCharger) shows the product variant. The MultiCharger range consists of the following product variants:

MC14-2.4

The MC14-2.4 is a charger which offers 14x USB ports each pre-configured with the Apple 2.4Amp iOS device charging profile. Each port is the equivalent of a 12W Apple Charger.

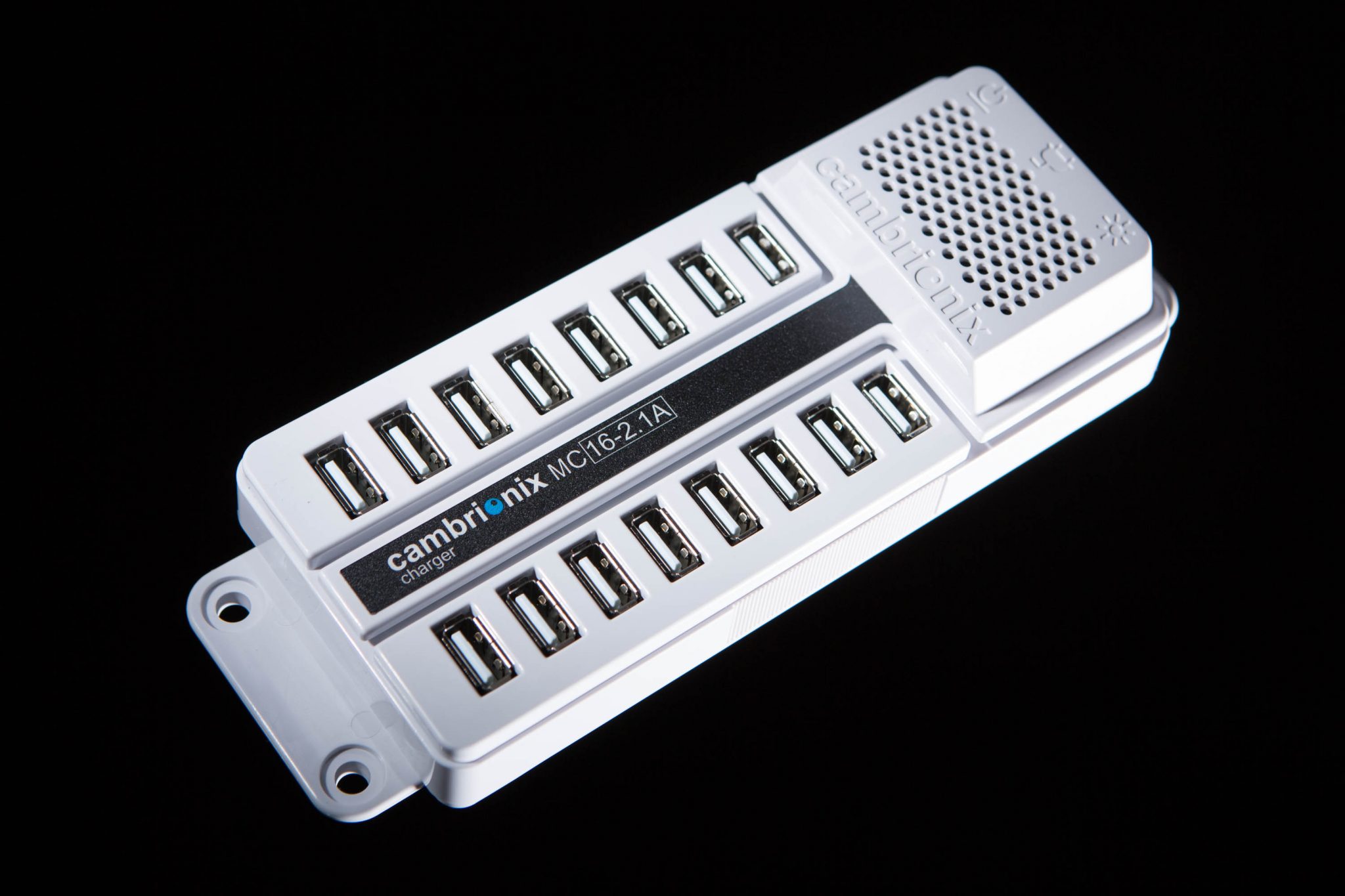

MC16-2.1

The MC16-2.1 is a charger which offers 16x USB ports each pre-configured with the Apple 2.1Amp iOS device charging profile. Each port is the equivalent of a 10W Apple Charger.

MC16-1.5

The MC16-1.5 is a charger which offers 16x USB ports each pre-configured with a widely accepted charging profile accepted by many mobile and small tablet devices. This charging profile is commonly called BC1.2. Do note that this profile is relatively low current (1.5Amp) and as a result isn’t recommended for large tablet devices such as the Apple iPad and iPad Pro.

General Description

Internally, the MultiCharger range has an incredibly efficient power supply architecture designed to operate with minimal heat dissipation continuously for many years. To further increase the lifespan of the MultiCharger, there is a forced-cooling fan built into the unit which is temperature controlled and will only operate when required. The fan may operate when the MultiCharger is operated within a high ambient temperature or if all ports are charging at their maximum designed current capacity.

The MultiCharger range is shipped with a worldwide input range 180W PSU which is rated such that it is not operated close to its limits and doesn’t generate significant heat. High temperatures in both the product and the power supply contribute largely to product lifespan, Cambrionix has minimised the thermal dissipation in the power supply and the product such that product lifespan is extended significantly.

The MultiCharger products are designed to cover the standard requirements for charging and as a result do not require firmware to maintain charging profiles or offer advanced control and monitoring features (such as those found on other Cambrionix products). The advantage to this is that you can offer basic but incredibly robust and reliable charging facilities simply and effectively.

The MultiCharger range is fitted with mounting flanges making it possible to attach the unit to the top or underside of a desk or within a secondary enclosure depending on your application.

The MultiCharger range is available without an MOQ and volume discounts are available and start at 50 units.

Distributor and reseller minimum order quantities apply, please contact enquiries@cambrionix.com for details.

Technical specifications

Product Safety:

• Independently safety tested by the Underwriters Laboratory (UL) under file #E346549
• CE Tested and marked.
• CB Certificate.
• FCC Part 15 Tested and marked.
• RoHS Compliant.
• China CCC certification (pending).
• Japanese PSE certification (pending).
• All products in the MultiCharger range offer ESD protection, over-voltage protection, over-current protection and over-temperature protection and comply with the latest EN60950 safety requirements for ITE.
• Housed within a UL94-V0 specification fire enclosure.

Operating Ratings:

• Operating ambient temperature: 0 to 40 Degrees Celsius.
• Relative humidity: 5% to 95% non-condensing.
• PSU AC Input: 100-240V / 3A Max / 47-63Hz.
• DC Input: 9.5V – 14V
• DC Output: 5.2V / 2.1A per USB port.

Packaging Information:

• Approx Unit Size (excl PSU & Flanges): 165 x 70 x 40 (L x W x H)
• Approx Unit Weight (incl PSU): 1.4kg including PSU and accessories (1.6kg boxed weight)
• Whats in the box: MultiCharger / 180W 12V PSU / Country specific power cord (1m) / USB2.0 Host cable (1m) / User Guide
