ikano

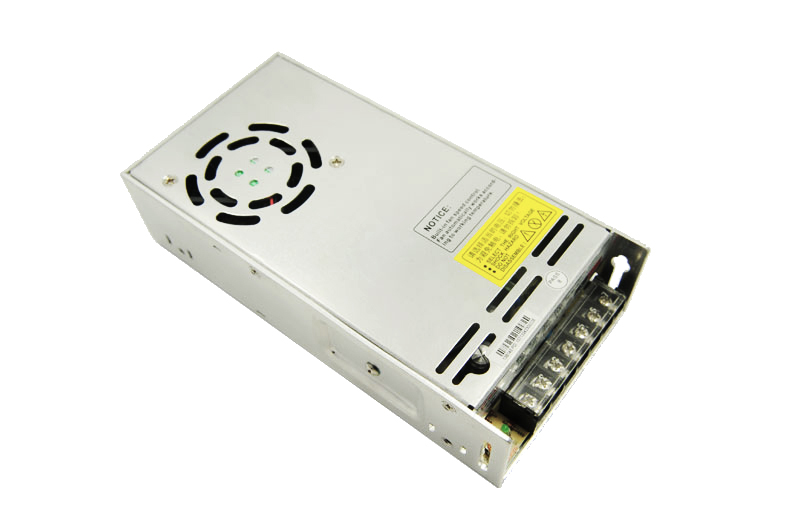

MODEL

IKGKF-320-12II

IKGKF-320-24II

IKGKF-320-36II

IKGKF-320-48II

OUTPUT

DC Output

12V

24V

36V

48V

Rated Current

25A

13A

8.9A

6.7A

CurrentRange Note 1

0~25A

0~13A

0~8.9A

0~6.7A

Ripple and Noise

Note 2

0~65C

≤200mV

≤150mV

≤200mV

≤150mV

-20~0C

≤250mV

≤200mV

≤200mV

≤200mV

Voltage ADJ. Range

10~15V

20~27V

32~40V

42~53V

Voltage Accuracy

±2.0%

±1.0%

Line Regulation

±0.5%

Load Regulation

±2.0%

±1.0%

Set-up Time

≤2S (230VAC input, Full load); ≤4S (120VAC input, Full load)

Hold up Time

≥10mS (120/230Vac input, Full load)

Temperature Coefficient

±0.03%/℃

Overshoot and Undershoot

<5.0%

INPUT

VoltageRange

90Vac~264Vac,120Vdc~370Vdc

FrequencyRange

47Hz–63Hz

Power Factor(Typical)

PF＞0.98/120VAC PF＞0.95/230VAC

Efficiency ( Typical) @ 230Vac

≥84.5%

≥87%

≥86.5%

≥87.5%

AC Current (max.)

< 4.5A

Inrush Current (Typical)

<50A@220Vac <30A@110Vac Cold start

Leakage Current

Input—output:≤0.25mA Input—PG:≤3.5mA (input 264Vac, 63Hz)

PROTECTION

Over Load

27~35A

14.5~19A

9.345~13.35A

7.3~10A

Protection type: Hiccup mode, auto recovery

Over power

324~420W

358~456W

336~480W

350~180W

Protection type: Hiccup mode, auto recovery

Short Circuit

Long-term mode, auto recovery

ENVIRONMENT

Operating amb. Temp. & Hum.

-20℃~65℃; 20%~90%RH No condensing(refer to the derating curve)

Storage Temp. & Hum.

-40℃~85℃; 10%~95%RH No condensing

Vibration

10 ~ 500Hz, 2G 10min./1cycle, period for60min. each along X,Y, Z axes

SAFETY &EMC

(Note 3)

Safety Standards

UL60950-1 2^nd Ed; IEC 60950-1:2005(2^nd Ed) ;EN60950-1:2006

Withstand Voltage

Primary-Secondary: 3.0KVac; ≤10mA .Primary-PG: 1.5KVac; ≤10mA. Secondary-PG: 0.5KVDC;≤10mA.

Isolation Resistance

10Mohms

EMI Conduction&Radiation

Compliance to EN55022, EN55024, FCC PART 15 Class B

EMSImmunity

Compliance to EN61000-4-2,3,4,5,6,8,11;

OTHERS

MTBF (MIL-HDBK-217F)

More than 200,000Hrs (25℃, Full load)

Dimension (L*W*H)

199×99×50mm

Packing

Cooling method

Cooling by forced air (built-in DC fan)

NOTE

1. All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature.

2. Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor.

3. The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
