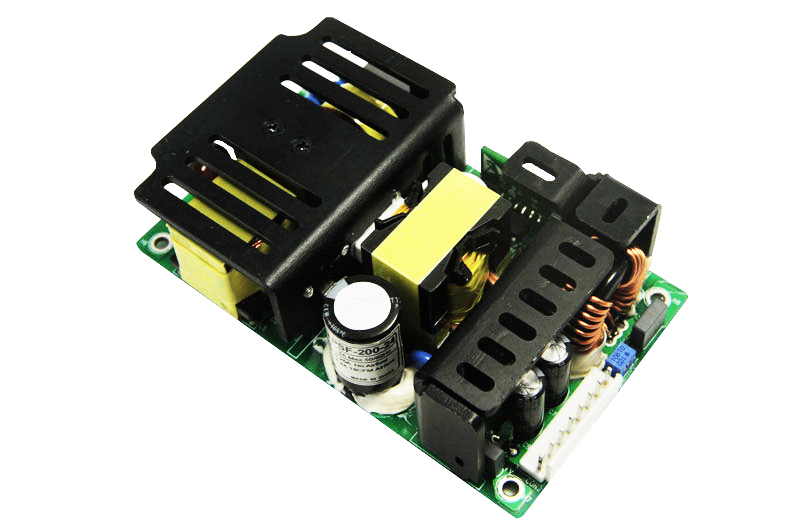

Model：IKPSF-200-series
Notes： Universal AC input/ Full range
Built-in Active PFC function
Withstand 300Vac surge input for 5 sec.
High efficiency up to 90%(typ)
Output protections: OLP/OVP/SCP/OPP
Wide operating ambient temperature (-20℃~70℃)
All using 105℃ long life electrolytic capacitors.
Free air convection for 150W and 200W with 20.5CFM forced air
100% full load burn-in test
5”*3” compact size
|
MODEL |
IKPSF-200-12 |
IKPSF-200-24 |
IKPSF-200-48 |
|
|
OUTPUT |
DC Output |
12V |
24V |
48V |
|
Rated Current |
16.7A |
8.4A |
4.167A |
|
|
CurrentRange(convection) |
0~12.5A |
0~6.25A |
0~3.13A |
|
|
CurrentRange(20.5CFM fan) |
0~16.7A |
0~8.4A |
0~4.167A |
|
|
Ripple and Noise Note 2 |
100mVp-p |
150 mVp-p |
250 mVp-p |
|
|
Voltage ADJ. Range |
±10% of rated output voltage |
|||
|
Voltage Accuracy |
±1.0% |
|||
|
Line Regulation |
±0.5% |
|||
|
Load Regulation |
±1.0% |
|||
|
Set-up Time |
≤2S (230VAC input, Full load)& ≤4S (115VAC input, Full load) |
|||
|
Hold up Time |
≥16mS/150W 10mS/200W （115 / 230VAC IN AT FULL LOAD） |
|||
|
Temperature Coefficient |
±0.03%/℃ |
|||
|
Overshootand Undershoot |
<5.0% |
|||
|
INPUT |
VoltageRange |
90Vac~264Vac,127Vdc~370Vdc |
||
|
FrequencyRange |
47Hz–63Hz |
|||
|
Power Factor(Typical) |
PF＞0.98/115VAC PF＞0.95/230VAC |
|||
|
Efficiency ( Typical) |
≥88.5% |
≥89% |
≥90% |
|
|
AC Current (max.) |
＜3A |
|||
|
Inrush Current (Typical) |
＜50A@230Vac ＜30A@115Vac Cold start |
|||
|
Leakage Current |
≤3.5mA |
|||
|
PROTECTION |
Over Current |
105%~150% of rated output current, hiccup mode, auto recovery |
||
|
Over Power |
105%~150% of rated output current, hiccup mode, auto recovery |
|||
|
Over Voltage |
125%~150% of rated output voltage, hiccup mode, auto recovery |
|||
|
Over temp. |
115+5℃(detect on Mosfet temperature);shut down, auto recovery after the temperature goes down to 70℃ |
|||
|
Short Circuit |
Long-term, Auto recovery |
|||
|
ENVIRONMENT |
OperatingambTemp& Hum |
-20℃~70℃; 20%~90%RH No condensing |
||
|
Storage Temp. & Hum. |
-40℃~85℃; 10%~95%RH No condensing |
|||
|
SAFETY &EMC Note 3 |
Safety Standards |
UL60950-1; EN60950-1：2006 |
||
|
Withstand Voltage |
Primary-Secondary:3.0KVac;≤10mA .Primary-PG:1.5KVac;≤10mA .Secondary-PG:0.5KVDC；≤10mA . |
|||
|
Isolation Resistance |
100M ohms |
|||
|
EMI Conduction&Radiation |
Compliance to EN55022,EN55024 Class B |
|||
|
Harmonic Current |
Compliance to EN61000-3-2,-3 |
|||
|
EMSImmunity |
Compliance to EN61000-4-2,3,4,5,6,8,11;EN55024,EN61000-6-2 heavy industry level |
|||
|
OTHERS |
MTBF (MIL-HDBK-217F) |
More than 200,000Hrs (25℃, Full load) |
||
|
Dimension (L*W*H) |
128×76.5×34.6mm (5”*3”) |
|||
|
Packing |
||||
|
Cooling method |
Cooling by free air convection |
|||
|
NOTE |
1.All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 2.Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 3. The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
|||
